1000mm High Aerodrome Taxi and Apron Marking Numbers, Letters & Arrow
Numbers, Letters and Arrows used for:
- Pilot Stop Line (8.5.17.3)
- Aircraft Parking Position Designation (8.5.24.2)
These characters have been drawn from Figure 8.5-19, Figure 8.5-20, Figure 8.5-21, Figure 8.5-22 & Figure 8.5-23.
Characters are 1000mm high with approx 100mm border all the way around the stencil.
Widths of Characters (mm)

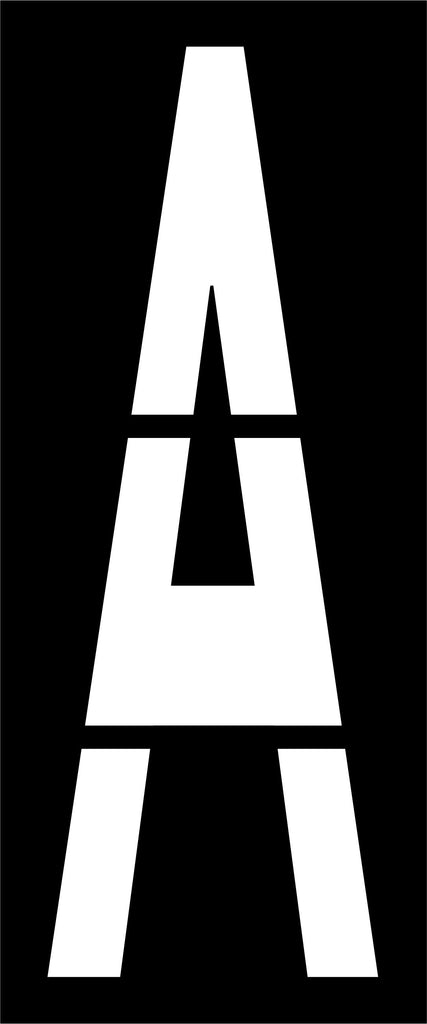

| A | 355 |

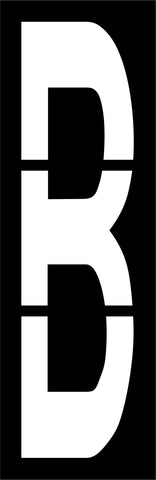

| B | 258 |

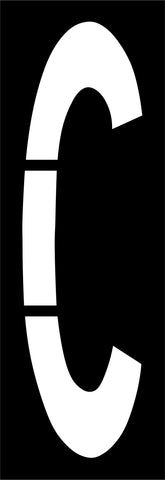

| C | 275 |

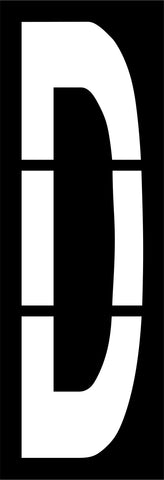

| D | 279 |

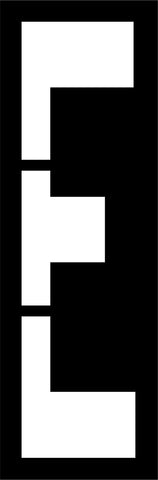

| E | 261 |

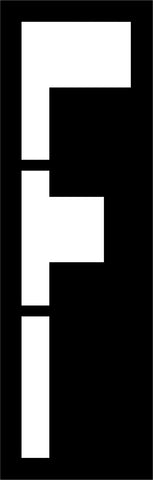

| F | 251 |

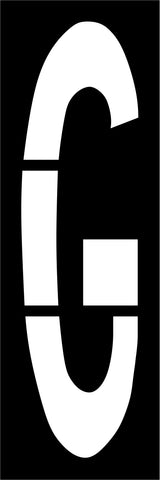

| G | 268 |

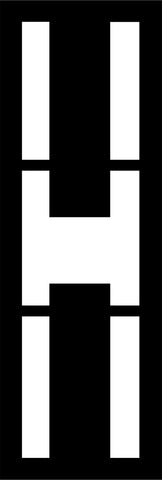

| H | 269 |
| I | 62 |

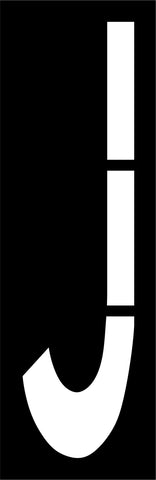

| J | 256 |

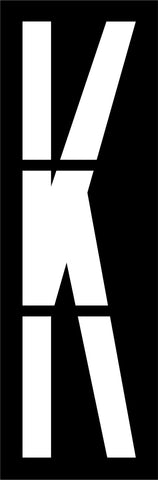

| K | 260 |

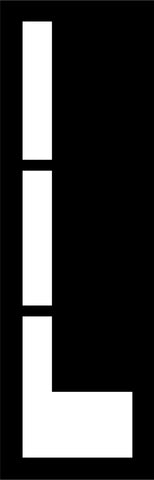

| L | 252 |

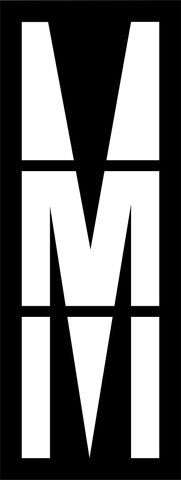

| M | 315 |

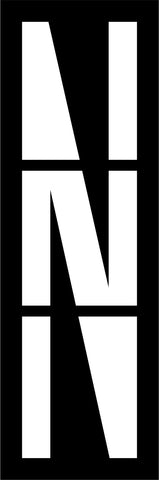

| N | 263 |

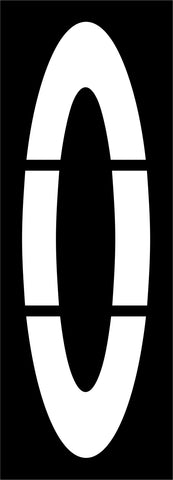

| O | 294 |

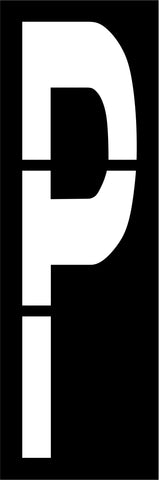

| P | 262 |

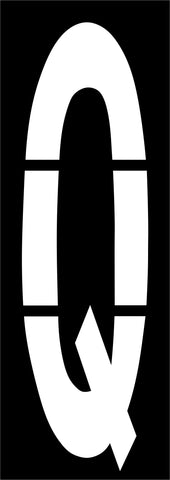

| Q | 290 |

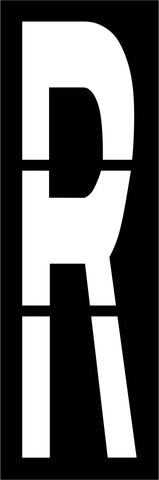

| R | 262 |
| S | 272 |

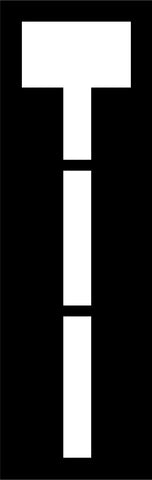

| T | 250 |

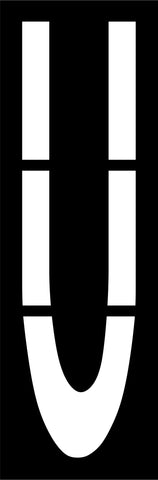

| U | 260 |

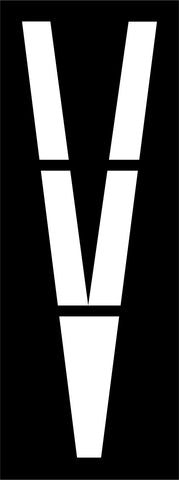

| V | 309 |

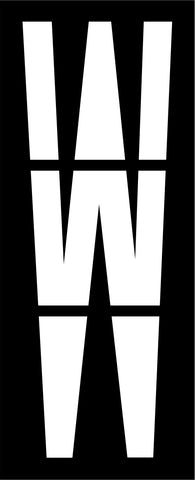

| W | 343 |

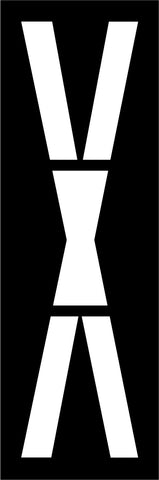

| X | 268 |

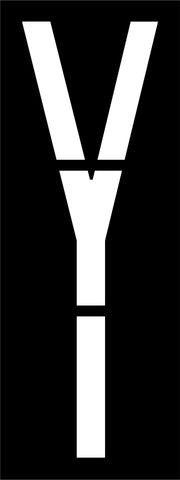

| Y | 312 |

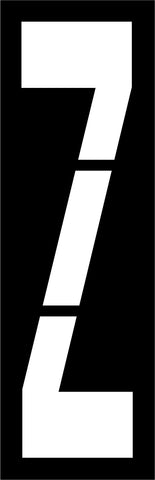

| Z | 255 |

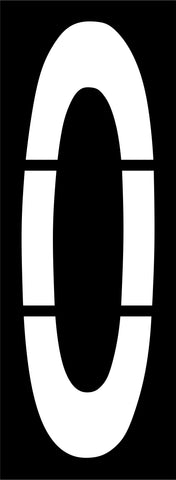

| 0 | 305 |
| 1 | 99 |

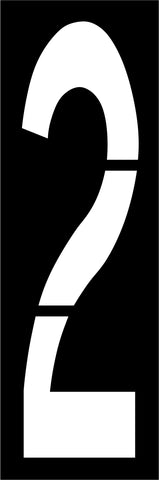

| 2 | 268 |

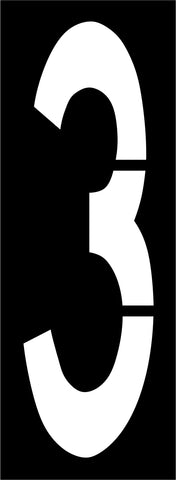

| 3 | 298 |

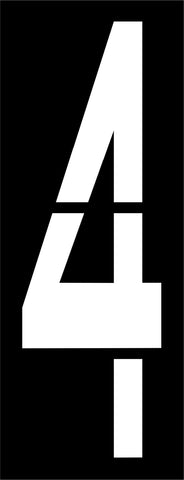

| 4 | 319 |

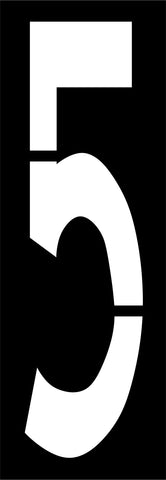

| 5 | 271 |

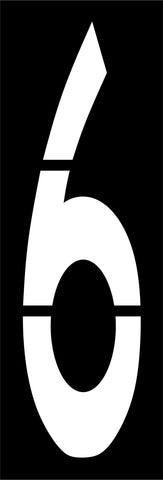

| 6 | 270 |

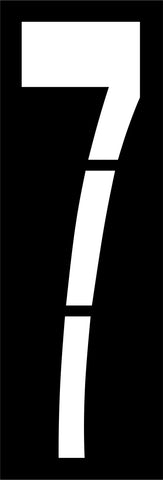

| 7 | 271 |

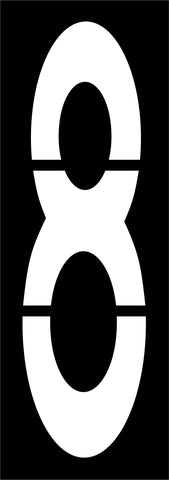

| 8 | 283 |

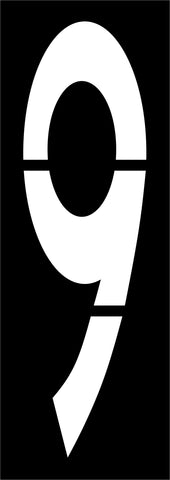

| 9 | 282 |

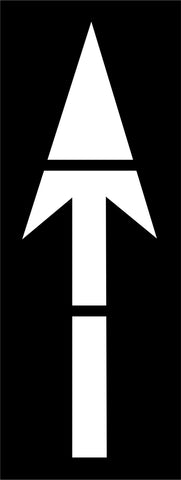

| ARROW | 309 |
